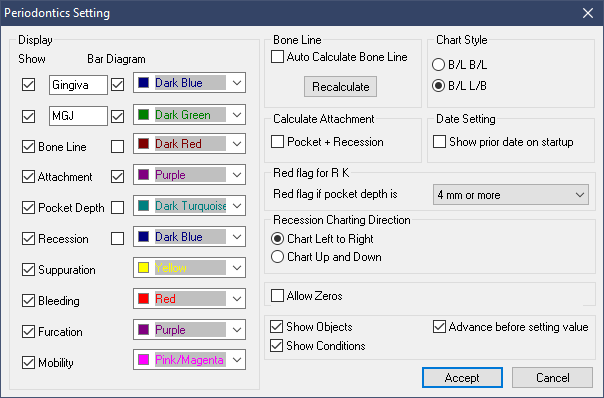

The available settings to adjust include:
- Auto Calculate Bone Line to enable or disable readings.
- Chart Style allows for the charting order to progress in one of two ways: B18-28, L28-18, B48-38, L38-48 or instead, B18-B28, L28-18, L48-L38, B38-B48.
- Red Flag if pocket depth is _mm or more will change the number/bar displayed to red if the depth is greater than the set number.
- Calculate Attachment calculates automatically by adding the pocket depth and the recession reading.
- The user can select Show Previous Date on Startup to have the previous readings loaded when they open the perio chart or they can start from a blank screen by leaving this option disabled.
- Recession Charting Direction can be changed to allow the readings to be taken the same time as the probing (up and down) or on its own (left or right).
- Allow Zeroes on the chart will show zeroes instead of just blank readings.
- Advance before setting value changes the timing the cursor advances when recording.
- Show Object and Show Conditions will display the conditions and objects currently posted on the Odontogram.
